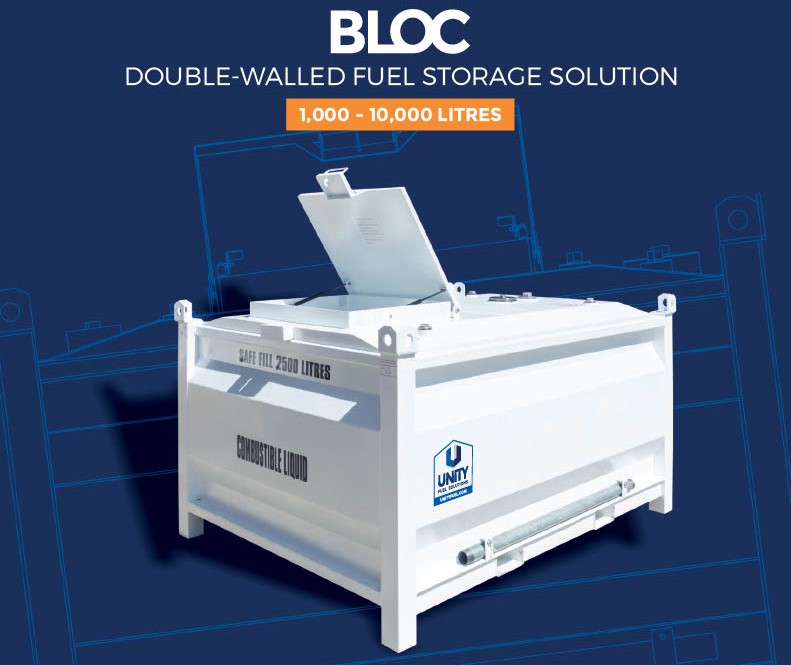

BLOC tanks
Unity Fuel Solutions' Bloc Tanks are the best solution for the storage and dispensing of diesel, gasoline and lubricant oils – from 1,000 to 10,000 litres.
- 1,000 – 10,000 LSafe fill range
- 7 yearStructural warranty
- 6Standard models
- Double wallIntegral containment
They offer a flexible solution to storing combustible liquid as well as improving fuel dispensing and management solutions. A practical design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
These mobile and modular units ensure fast and easy transportation to site, are easily relocatable and require minimal site works or preparation required. A place-fill-and-pump installation process offering versatility and speed on commissioning.
The freestanding design allows for 360° tank viewing and inspection.
Curved roof top design and high-grade paint finish ensures longer durability in the elements.
Our double-walled tanks are designed as integral secondary containment and therefore do not require independent bunds for leak containment. Double-walled tank = SFL primary tank + interstitial space + secondary external tank.
BLOC tanks offer a fast, easy and convenient fuel storage solution.
Double-wall containment for added safety and security.
BLOC specifications
Safe fill (SFL) is the usable volume; capacity is the total shell volume. Dimensions are nominal.
| Model | Safe filllitres (US gal) | Capacitylitres (US gal) | Lengthmm (in) | Widthmm (in) | Heightmm (in) | Tarekg (lb) | Baffle |
|---|---|---|---|---|---|---|---|
| BLOC 1000 | 1,000 |
1,160 |
1,100 |
1,864 |
1,309 |
870 |
Yes |
| BLOC 2000 | 1,890 |
2,000 |
2,274 |
1,394 |
1,309 |
1,090 |
Yes |
| BLOC 2500 | 2,500 |
2,684 |
2,274 |
1,674 |
1,309 |
1,280 |
Yes |
| BLOC 4500 | 4,500 |
4,800 |
2,774 |
2,274 |
1,309 |
1,790 |
Yes |
| BLOC 6000 | 6,000 |
6,200 |
3,574 |
2,274 |
1,309 |
2,180 |
Yes |
| BLOC 10000 | 10,000 |
11,000 |
6,058 |
2,438 |
1,295 |
4,000 |
Yes |
4-Hour Fire Rated protection options available on BLOC TANKS. Check with Unity Fuel Solutions on specifications.
Standard features
- Meets UL-142, ULC-S601-14 and UN-31-A/Y compliance as standard (UN-31-A/Y covers BLOC 1000 to BLOC 6000 only).
- Double-walled tank construction consists of a 5mm primary steel tank and a 3mm secondary steel tank (5mm secondary tank on the Bloc 10000 model).
- Baffled internally to reduce product movement should the unit be moved with contents.
- Accessible and removable tank manway for internal tank maintenance and cleaning.
- Recessed spill box/pump cabinet with pump mounting bracket. All housed under heavy duty lockable lid for additional fuel security.
- Sectional cut-outs on sides of spill box to allow flexible hoses or pipework to external requirements (i.e. generators).
- Curved roof feature for water drainage to top of tank.
- Complete with aluminium gauged dipsticks, 1 x galvanized updraft vent breather system and multiple port fittings.
- Air pressure tested prior to leaving our factory.
- Mobile and modular design allows for ease of transportation.
- 250-300 Micron thickness 'WHITE' paint finish as standard. Other colour options are available upon request.
- Flammable and combustible liquid safety labels and decals supplied as standard.
- Forklift pockets and certified tie down/lifting points at each corner.
Conditions apply. Some features standard, some optional extras, depending on product range. Custom colours, coatings, dimensions and refuelling equipment packages are available upon request.
Ports and fittings
Manway (inside lid)
- 1 x 2" Fill Point
- 1 x 2" Dip Point
- 2 x 2" Suction Ports (BSP & NPT)
- 2 x 2" Return Ports (BSP & NPT)
- 2 x 1" Suction Ports (BSP & NPT)
- 2 x 1" Return Ports (BSP & NPT)
Exterior of tank
- 1 x 2" Interstitial Dip / Vent
- 1 x 2" Suction Port (BSP)
- 1 x 2" Spare Port
- 2 x 4" Submersible Pump Provision (BSP & NPT)
- 1 x 2" Free Vent Port
Mobile and modular
- BLOC 1000 – 6000: Forklift pockets, certified tie down/lifting points at each corner.
- BLOC 10000: ISO corner castings and skid tray base for tilt tray or swing lift loading.
- Tanks can be stacked 4 high empty, 2 high full.
Quote a BLOC tank
Tell us the capacity, product and delivery location. Or call 780 805 5281.
